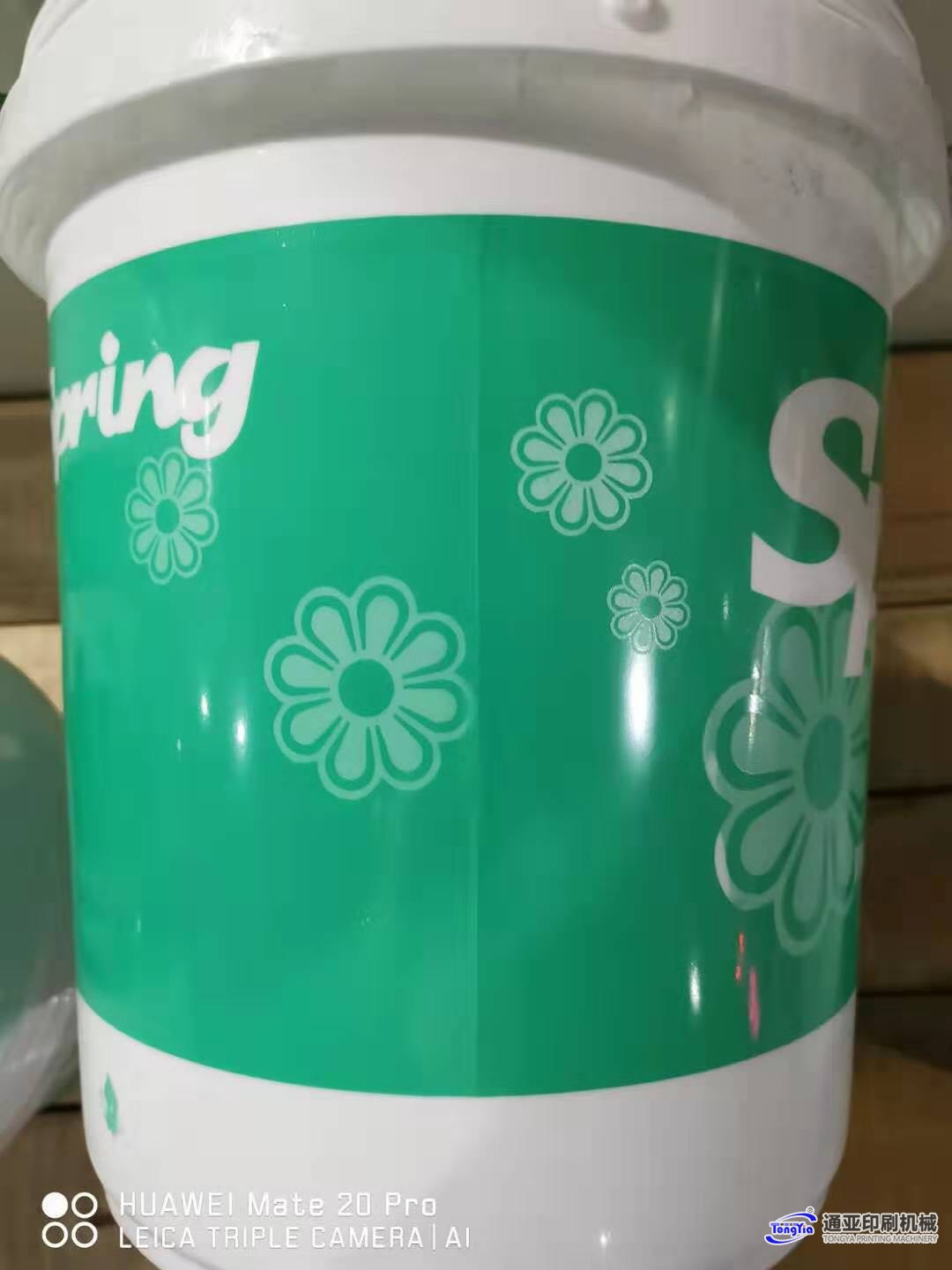

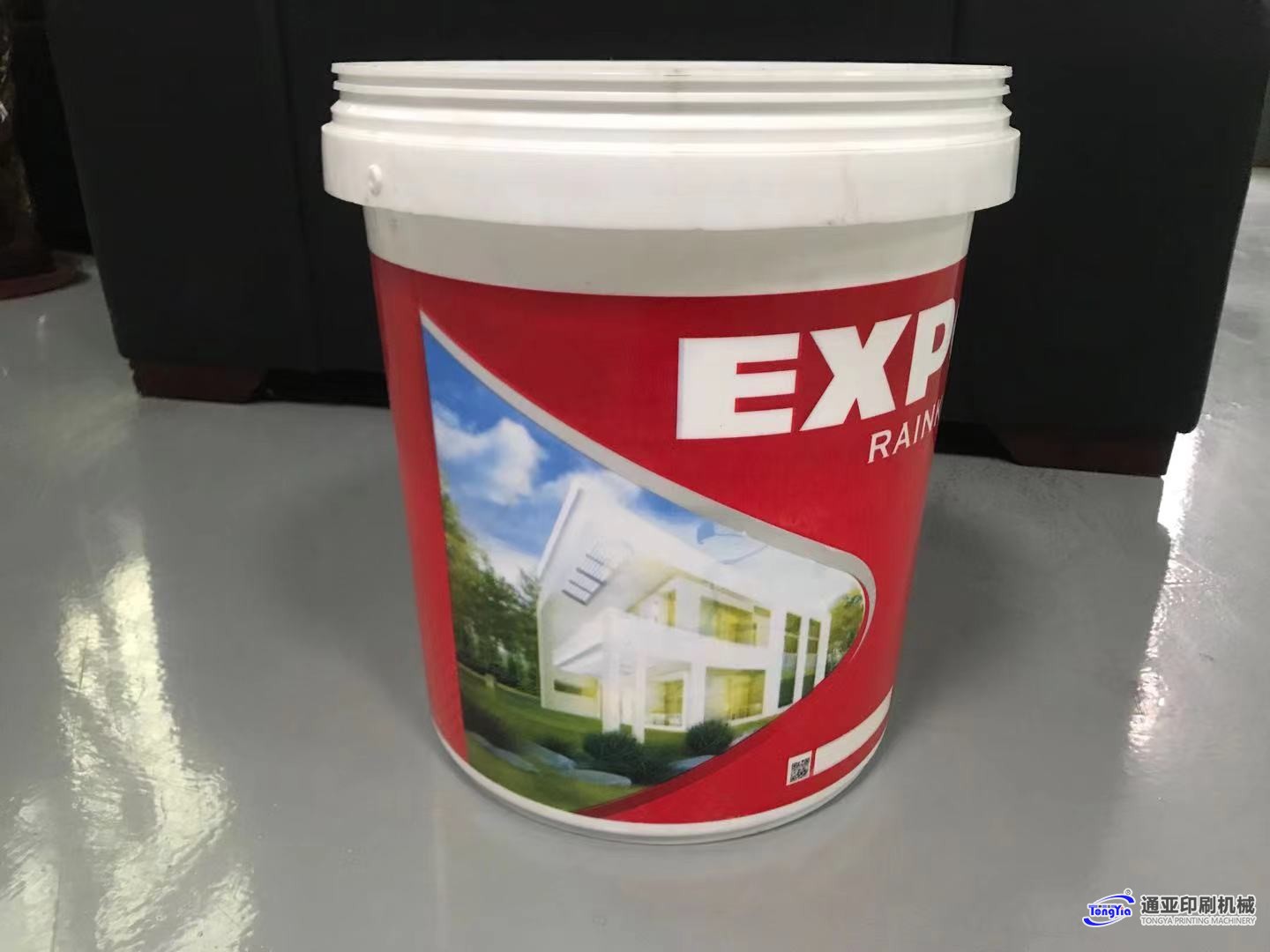

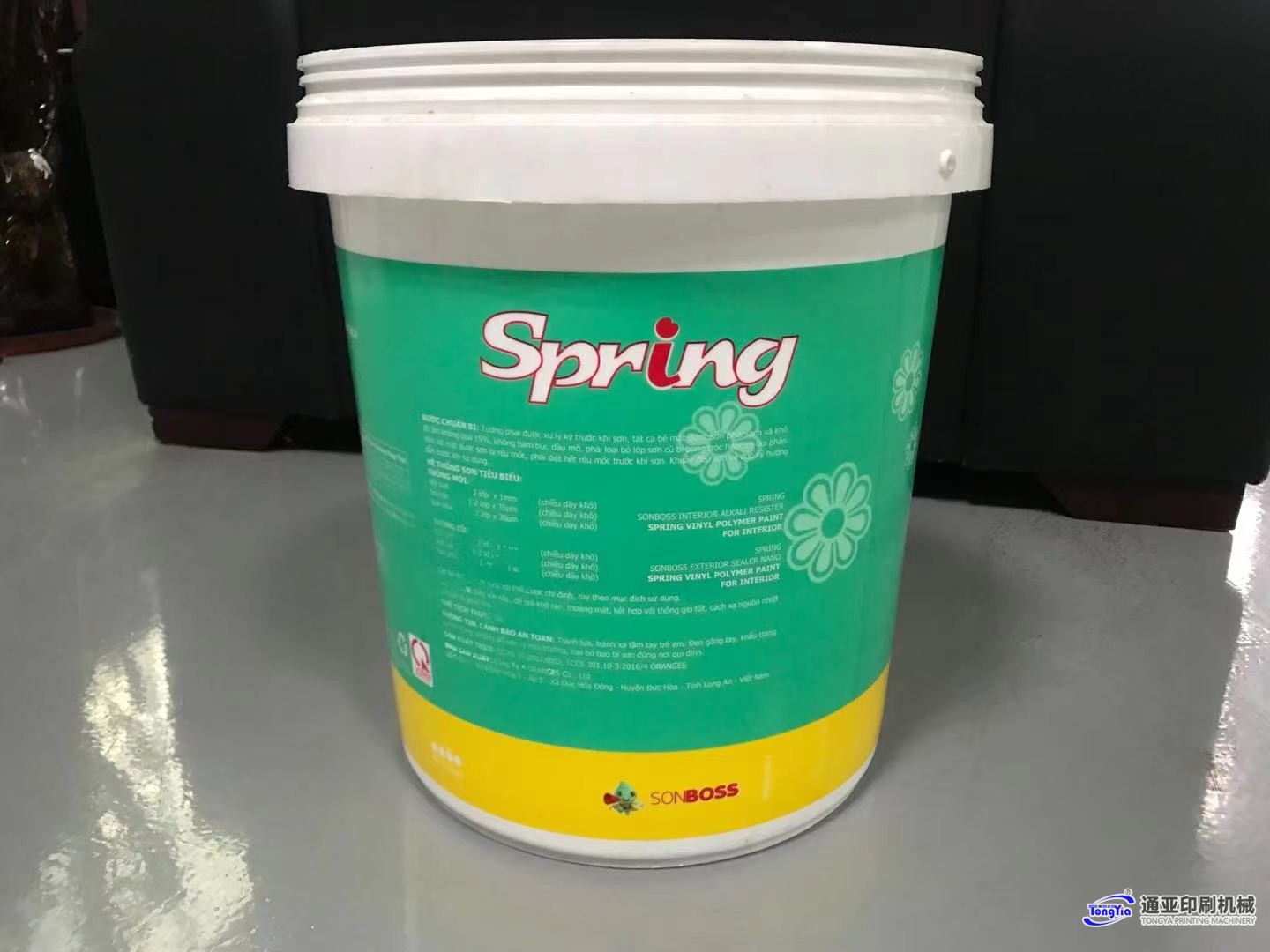

适用于：18L涂料桶、油漆桶、化工桶等圆桶四色丝网印刷

TYS-102UV4-18L技术参数PARAMETERS:

印刷桶直径DIAMETER OF PRINTED BARREL:  300-380MM

             高度HEIGHT:  200-400MM

干燥方式WAY OF DRYING/Curing:     UV DRYING (6.5KW/COLOR * 4 COLORS = 26KW)

            MAIN MOTOR:      2KW * 4 = 8KW

印刷速度Printing speed:          16-18PCS/MIN (1000-1100PCS/HR)

电源Power supply:              3 phases 50Hz 34KW

气源AIR SOURCE:               5-7 BAR

机器尺寸MACHINE SIZE:           based on actual machine design.

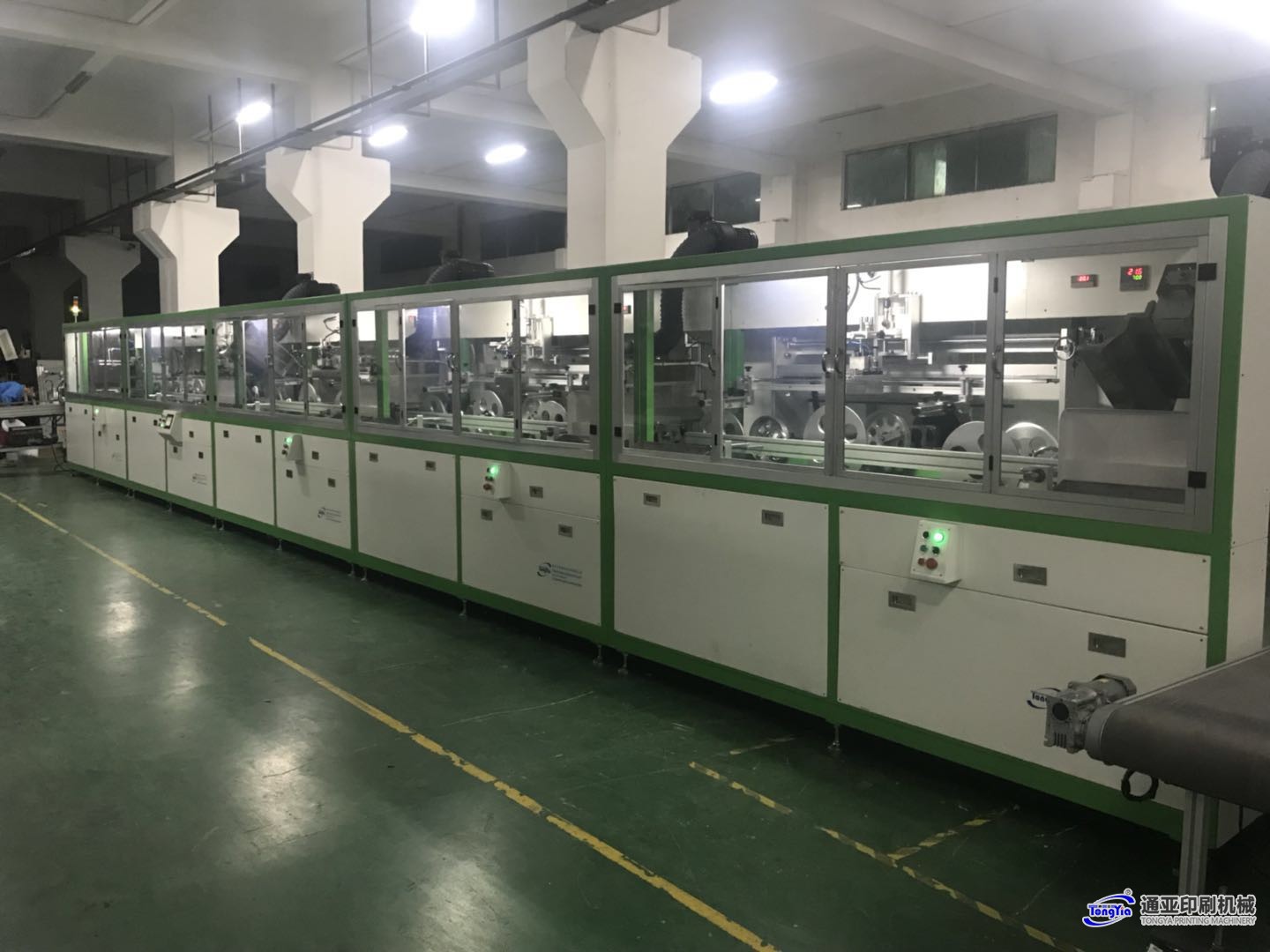

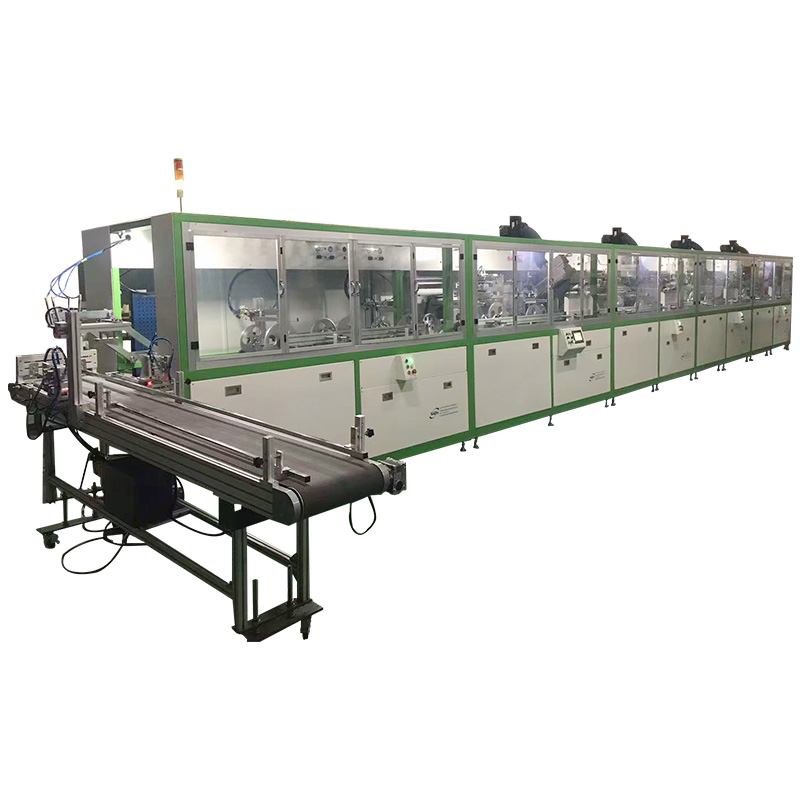

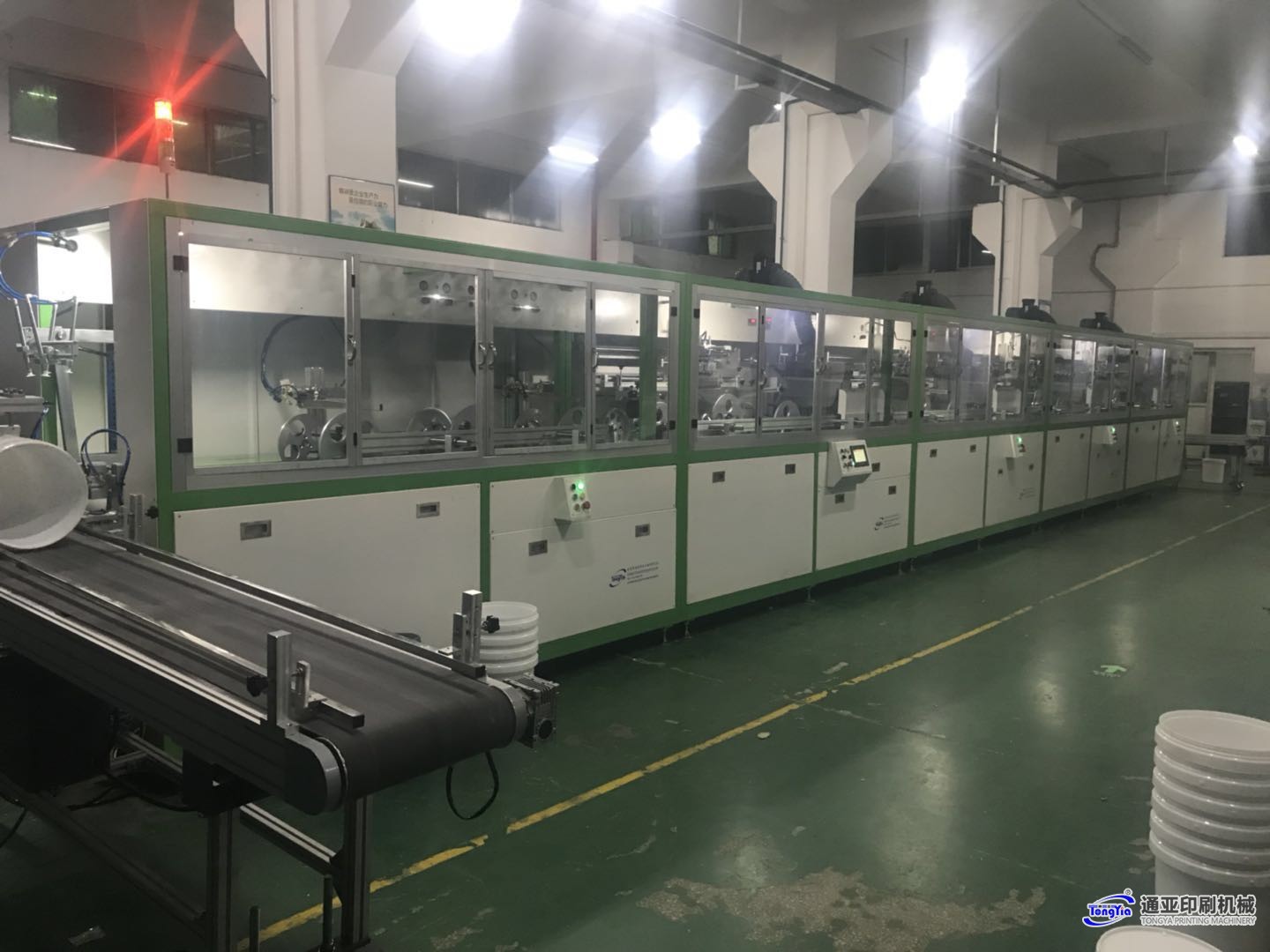

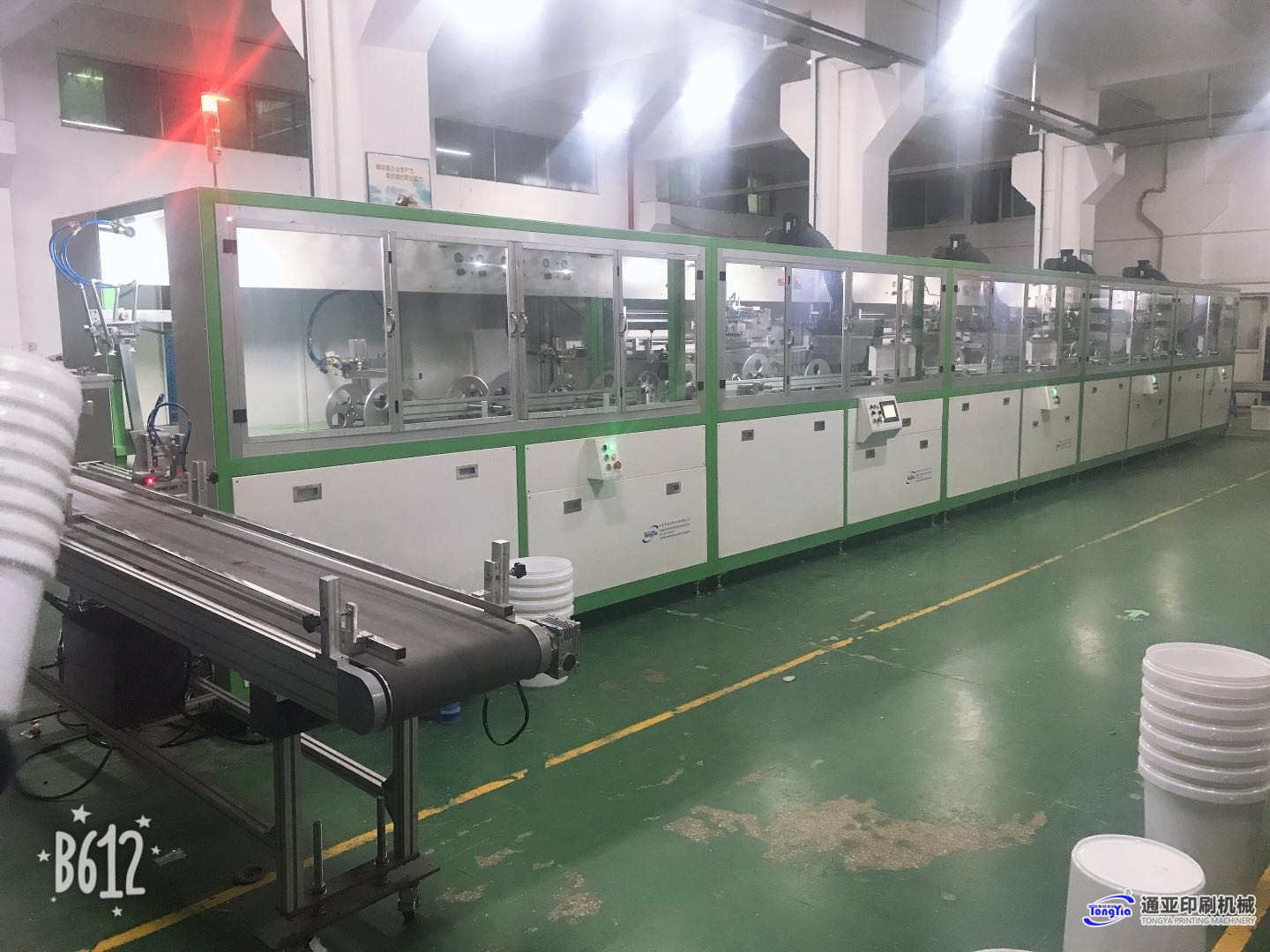

（1）TYS-102UV4-18L全自动丝网印刷生产线为四色圆面印刷机，

Fully automatic screen printing machine Model No. TYS-102UV4-18L is for color printing machine fitting Circular & Flat Container Products.

（2）整套生产线的控制系统由先进模块式可编程控制器（PLC）与简单易用的触摸屏（TOUCH SCREEN）所构成； 本机的机械传动部分采用进口马达与其配套的变速箱构成，具有火焰表面处理、自动升降印头、无极调速、快慢速机械传动、自动预先对位、无件不印刷等控制功能；自动火焰表面处理装置用于改变容器表面之组织结构，确保印刷油墨牢固附着于印刷上；

The full production line is consist of advanced PLC unit and Easy used touch screen; the model Mechanical drive parts adopted imported Motor and related gearbox and its function includes Automatic flame surface treat, auto up and down printing head, stepless speed regulation, Fast and slow mechanical drive,Automatic Pre-contraposition System, No Object No printing; the includes Automatic flame surface treatIs for changing the object’s surface Structure so that assuring the printing ink strongly adhered on the object .

（3）本机由自带UV紫外线固化炉组成之丝印生产线，尤能显现本公司自动化产品之优越性，同时在油墨固化前检出印刷次品以便再次印刷也是一大特点。光电检测输送带停止功能可以减少进料时皮带对容器之磨花；

The model TYS-102UV4-18L is advanced machine with UV curing and detect printing defected before ink curing.

The “STOP FUNCITON” for Photoelectric inspection conveyor belt can reduce Wear and tear of the belt on the container;

TYS-102UV4-18L配置PARAMETERS:

主电机MAIN MOTOR:           西帝SITI

气动元件Pneumatic element:    SMC OR AirTAC亚德客

感应电眼Sensor eyes:          SICK

小电机small motor:           GIAN精研 OR 万鑫WANSHSIN

电磁阀SOLENOID VALVE:       CKD OR SMC

PLC & TOUCH SCREEN:         OMRON OR DELTA欧姆龙或台达

轴承BEARING:               NSK OR THK

继电器（RELAY）： IDEC（日本和泉）

变频器（INVERTER）：Omron（日本欧姆龙）

按钮开关（SWTICH）：IDEC（日本和泉）

光电开关（SENSOR）：AUTONICS
